MLR120RH_SET90° Grab Rail & Backrest RH Set

Specification

Material #304 Satin Stainless Steel Frame & Mounts
Finish Satin Stainless Steel Right Hand Set with MLR119C
Mounting Concealed Fix
Backrest Standoff Adjustable depth to suit installation requirements
Notes Installation instructions provided
This set consists of:
• MLR120RH_X
• MLR119CMKII
• MLR_BR_350
 *** Pieces can be sold separately if required ***


* This unit is accessible compliant when installed in accordance with AS1428.1. guidelines and when installed with the appropriate cistern.

* It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.

* Compliant with the Force Requirements within AS1428.1: 2021, Section 14.



  • This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.
MLR120RH_SET LH Grab Rail & Backrest Set
MLR120RH_SET

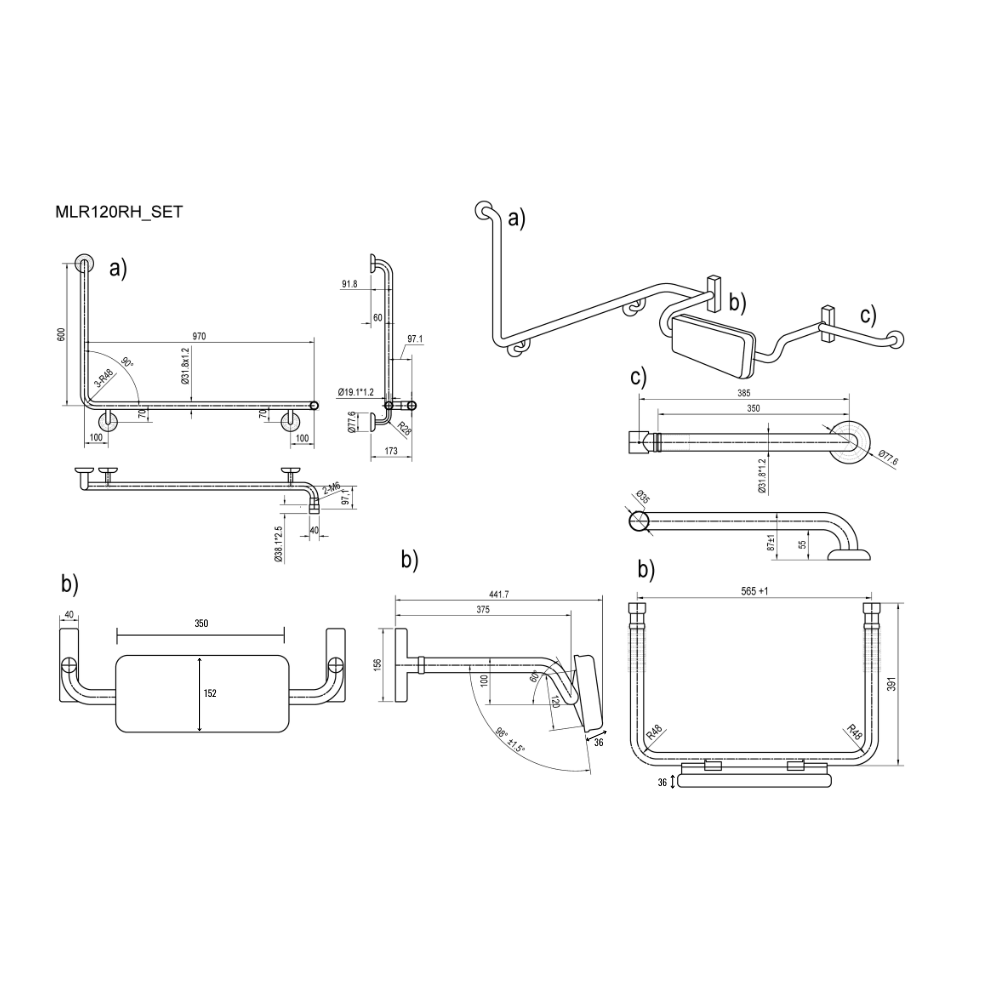

MLR120RH_SET and MLR120RH_VPSET Drawing
