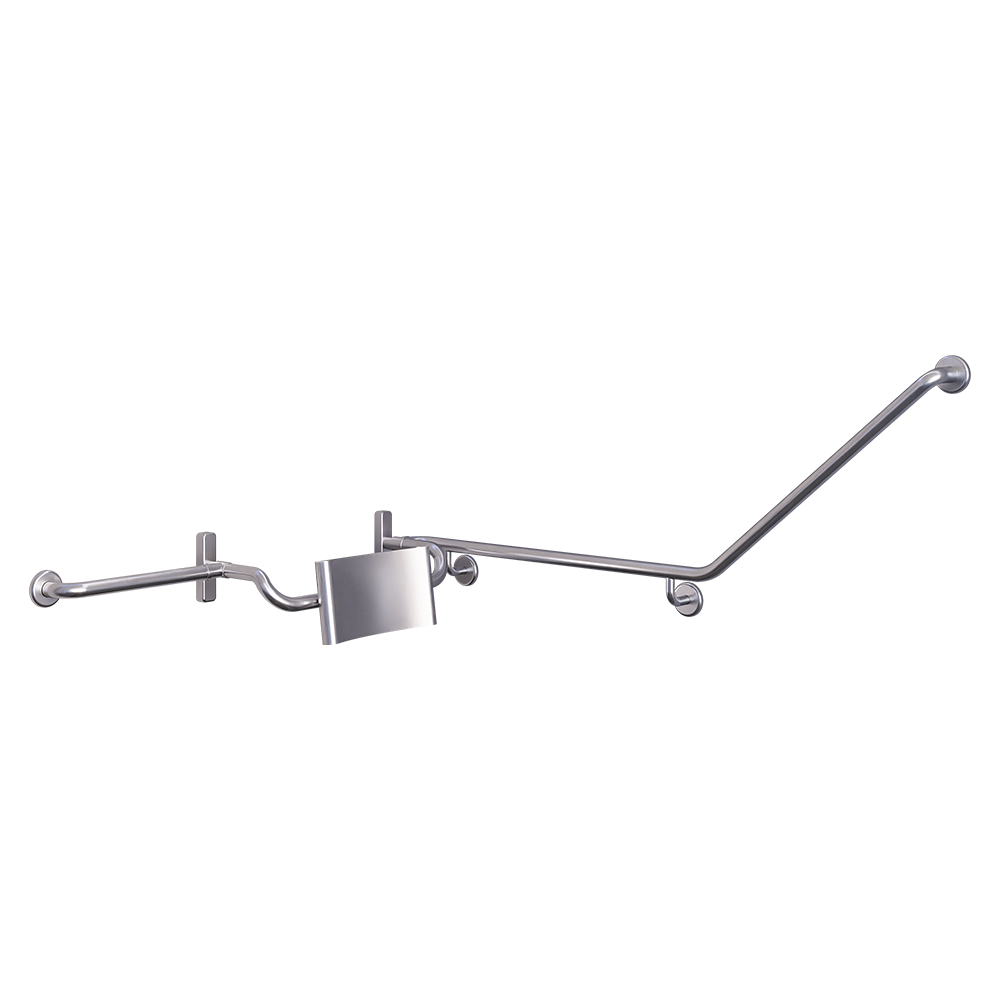

MLR121LH_VPSET40° Grab Rail & Vandal Proof Backrest Set LH in Satin Stainless Steel

Specification

Material #304 Stainless Steel Frame & Mounts
Finish Satin Stainless Steel Left Hand Set with MLR119C_VP
Mounting Concealed Fix
Backrest Standoff Adjustable depth to suit installation requirements
Notes

Installation instructions provided
This set consists of:
• MLR121LH_X
• MLR119C_VP
• MLR_BR_350
***Pieces can be sold separately if required***



* This unit is accessible compliant when installed in accordance with AS1428.1. guidelines and when installed with the appropriate cistern.

* It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.

* Compliant with the Force Requirements within AS1428.1: 2021, Section 14.



  • This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.
MLR121LH_VPSET LH Grab Rail & Backrest Set
MLR121LH_VPSET

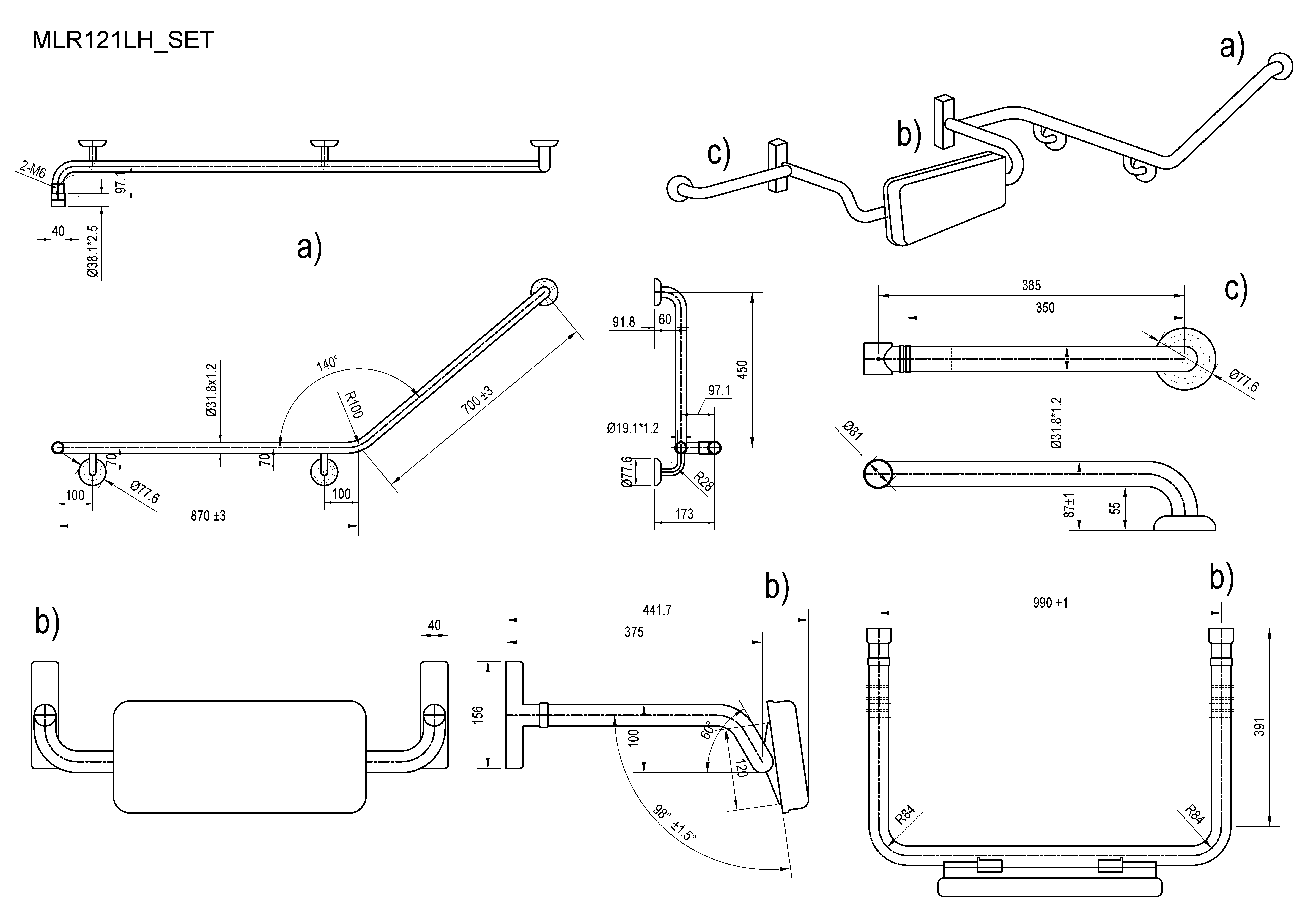

MLR121LH_SET and ML121LH_VPSET Drawing
