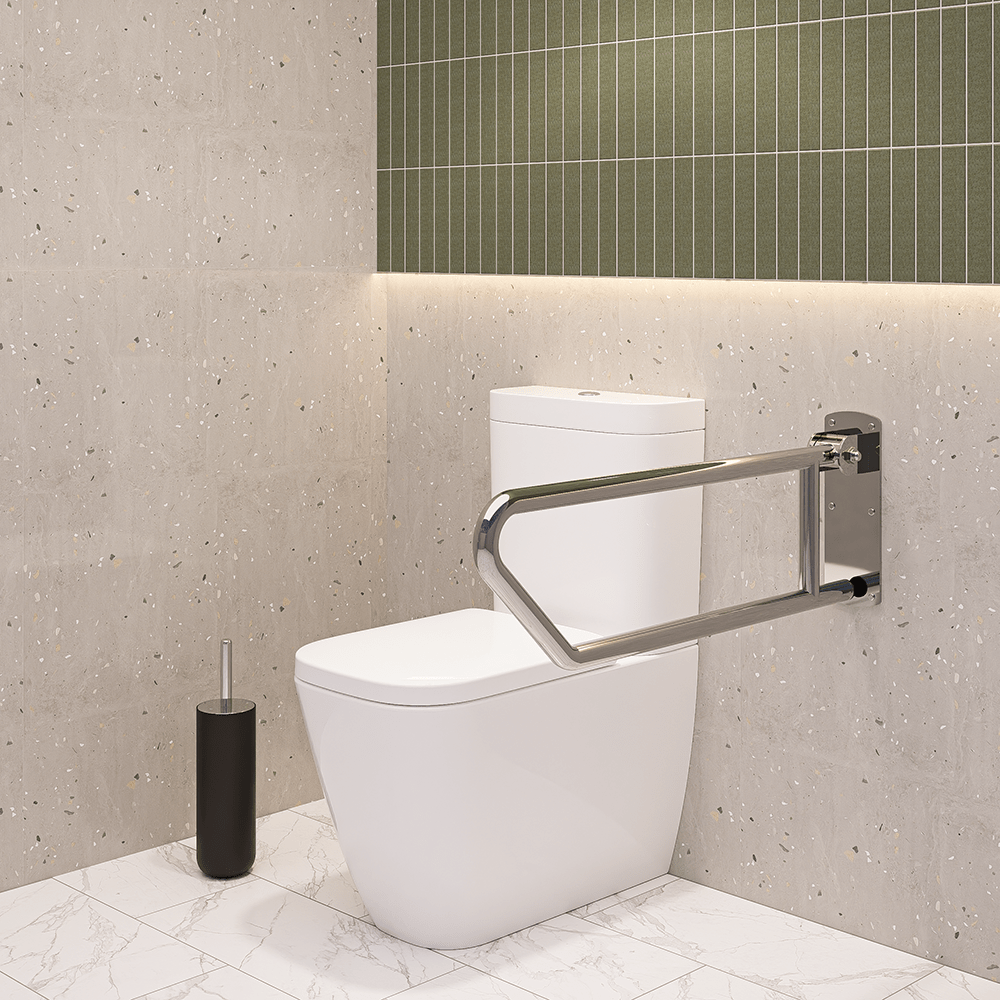

MLR55_PSSClick-Lock Pull Down Grab Rail in Polished Stainless Steel

Specification

Material #304 Stainless Steel
Tubing 1.2mm #304 Stainless Steel - 32mmØ
Mounting Bracket
& Brace
4.5mm Formed #304 Stainless Steel
Finish Polished Stainless Steel
Overall Dimensions  812mmL x 300mmH
Grab Rail 243.6mmH from outer edge to edge
Mounting Bracket 100mmW x 300mmH x 30~50mmD x 4.5mmT
Mounting Holes 6 off by 8.5mmØ
Features Click-lock system to prevent rail sliding down
Unit is Seamless Welded & Polished
Also Available

MLR55_SS: Satin Stainless Steel

Notes

* Unit stores in upright position

* It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.

* Compliant with the Force Requirements within AS1428.1: 2021, Section 14.

PSS Rail without holder
MLR55 Click-Lock Pull Down Grab Rail Drawing

PSS

Qty
