Overlapping Lift Off Spring Hinge

  • Diecast Zinc, Brass Shaft
  • Nylon Inserts, ABS Snap-On Covers
  • Screw Fix or Bolt Through
  • Lift Off
  • Available in Hold Open or Hold Closed - Please Specify
  • Available in Left Hand or Right Hand - Please Specify

FINISH
Product Code
OL105
Dimensions
86mmH x 93mmW x 35mmD
Email to colleague Product enquiry
Product successfully added to Met-Schedule

Notes

Please specify at the time of ordering

  • OL105_13LH_HC: Left Hand, Hold Closed - Assists the door to move towards a Hold Closed Position
  • OL105_13LH_HO: Left Hand, Hold Open - Assists the door to moved towards a Hold Open Position
  • OL105_13RH_HC: Right Hand, Hold Closed - Assists the door to move towards a Hold Closed Position
  • OL105_13RH_HO: Right Hand, Hold Open - Assists the door to move towards a Hold Open Position



  • For 18mm or 33mm board add OL105_18 or OL105_33 Spacers.
  • For Bolt Through use 105C_FACEPLATE_SCP Concealed Fix Face Plate.
  • For Metlam Australia Care and Maintenance Guidelines, Installation Instructions, Product Specifications, and Warranty Details, please refer to the Downloads Tab.

Product Enquiry

For more information, please complete the product enquiry form or contact Metlam Australia.

HEAD OFFICE

For Accounts, Customer Service, Sales & General Enquiries:
T: 1300 METLAM
    (1300 638 526)

INTERNATIONAL SALES

For Accounts, Customer Service, Sales & General Enquiries:
T: 1300 METLAM
   (1300 638 526)

NSW (Incorporating ACT)

For Sales & Customer Service Enquiries:
T: 02 8778 8801

QUEENSLAND

For Sales & Customer Service Enquiries:
 T: 07 3247 0200

VICTORIA (Incorporating TAS)

For Sales & Customer Service Enquiries:
T: 03 5420 8800

WESTERN AUSTRALIA

For Sales & Customer Service Enquiries:
T: 08 6250 2601

SOUTH AUSTRALIA & NORTHERN TERRITORY

For Sales & Customer Service Enquiries:
T: 0407 553 045
NEW ZEALAND

For Sales & Customer Service Enquiries:
T: 0407 863 730

Material Diecast Zinc, Brass Shaft, Nylon Inserts, ABS Snap-On Covers
Finish Satin Chrome Plate
Mounting
Screw Fix or Bolt Through
13mm Screw Fixings Supplied
18mm+ Fixings Supplied if adding 18mm or 33mm Spaces (OL105-SPACER)
Suits 13mm board
For 18mm or 33mm board please add OL105 Spacer
Minimum Hinge Clearance For Lift-Off Hinges
40mm
Load Rating
15Kg per hinge
For optimum performance -
2 hinges per door up to 30Kgs
For doors over 30Kg allow for 15Kg per hinge
Note: 3 Hinges per door is recommended to prevent door bowing



Accessibility and safety features of Metlam Australia Toilet Partition Hardware and how to use them
Cleaning and Maintenance for your Toilet Partition Hardware
Learning the Language of Toilet Partition Hardware
Troubleshooting your Metlam Australia Toilet Partition Hardware - Hinges

EXPLORE SIMILAR ITEMS YOU MAY LIKE

Related Products

All Products
08_117C_OLSTAPLE_SCP

117C_OLSTAPLE_SCP

Overlapping Lift Off Staple in Satin Chrome Plate

Product successfully added to Met-Schedule

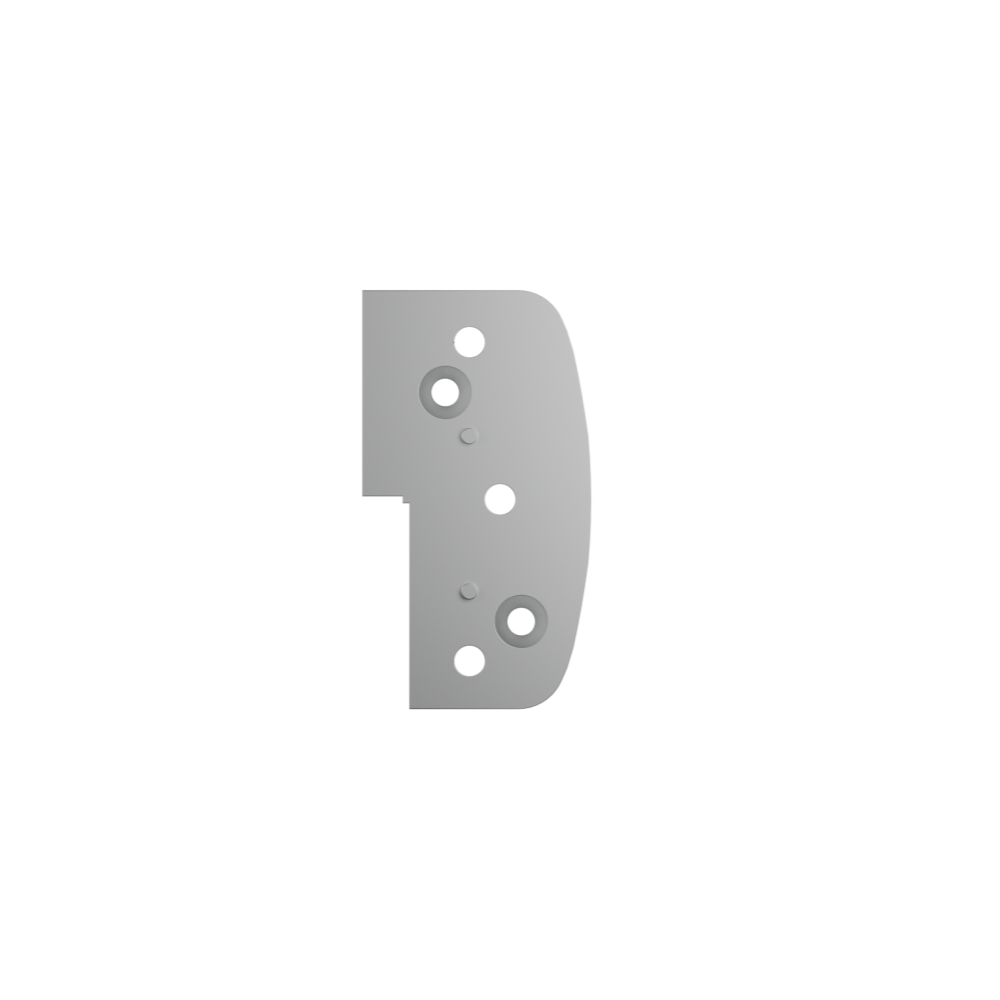

OL105-SPACER
