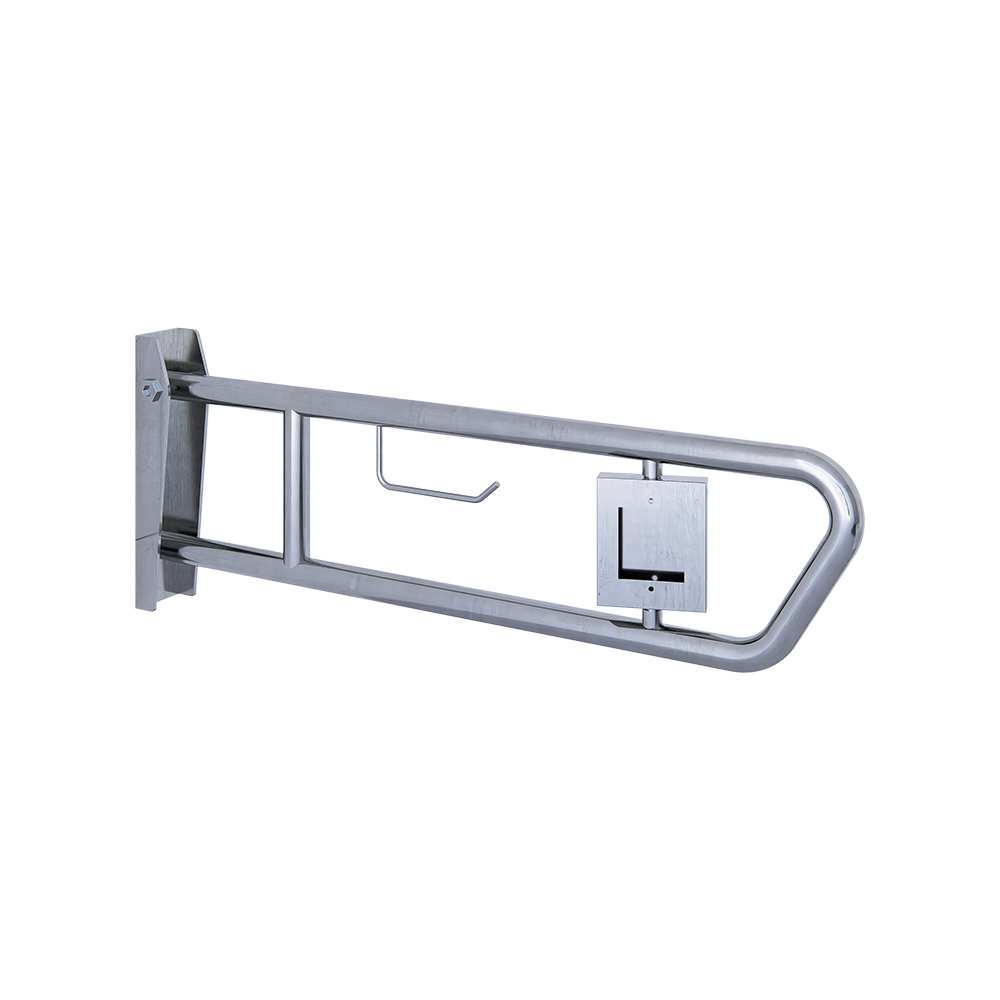

MLR50NCAL_UNITPH_SSPull Down Grab Rail, Nurse Call Facility & TR Holder - (MLR50NCAL_UNIVERSAL_TPH - Previous Code)

Specification

Material #304 Stainless Steel
Finish
Satin Stainless Steel
Tubing 1.2mm #304 Stainless Steel - 32mmØ
Mounting Bracket, Brace, NC Housing

2.5mm Formed #304 Stainless Steel

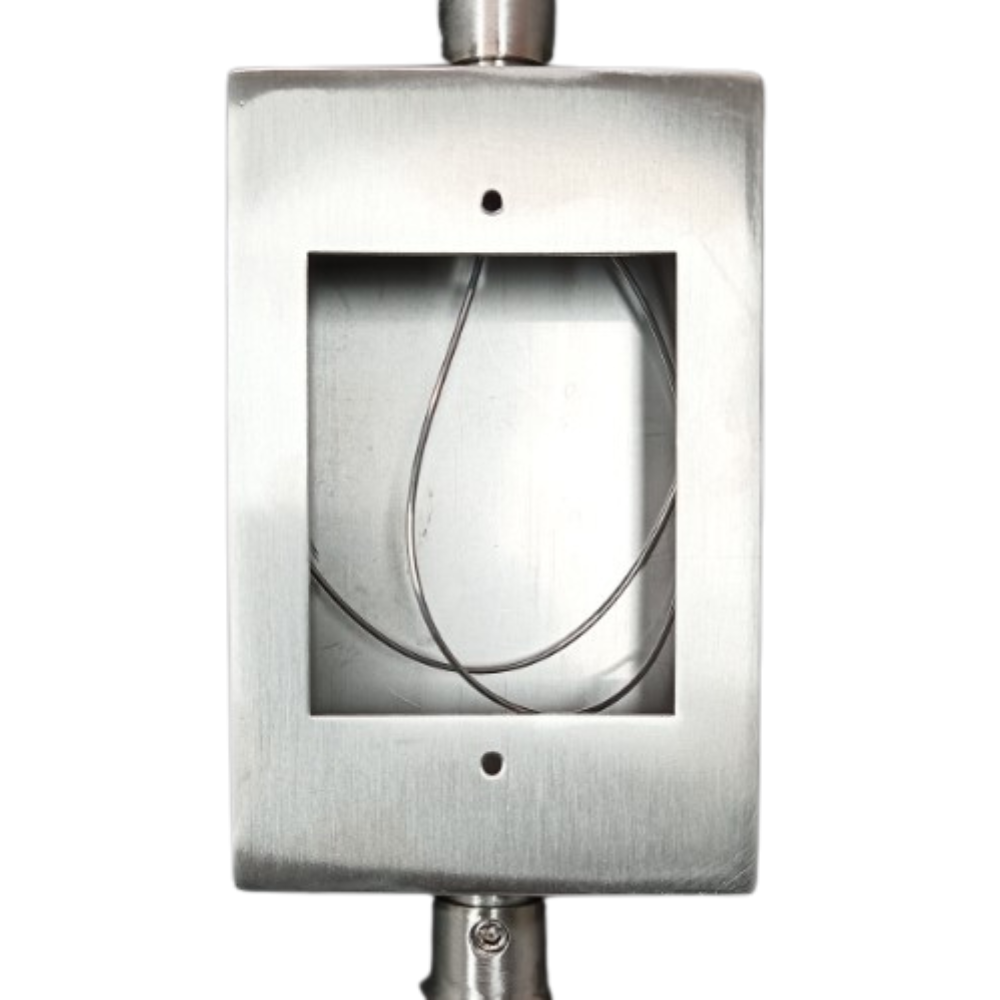

Housing unit for Nurse Call Button swivels which allows for unit to be universal and can therefore be used as a left hand or right hand pull down grab rail

Overall Dimensions 850mmL x 315mmH
Grab Rail 215mmH from the outer edge to edge
Toilet Roll Holder

168mmL with top of Holder 50mm below the underside of the upper rail

12.5mmØ Stainless Steel Bar

Mounting Bracket 104mmW x 315mmH x 30~50mmD x 2.5mmT
Mounting Holes 7 off by 8mmØ
Features Unit is Seamless Welded & Polished
Notes

* It is the responsibility of the installer to ensure that the surface/substrate that the unit is installed upon and the fixings used are suitable to withstand the weight bearing loads of the unit and if required as per AS1428 / Australian building code regulations.

* Compliant with the Force Requirements within AS1428.1: 2021, Section 14.
