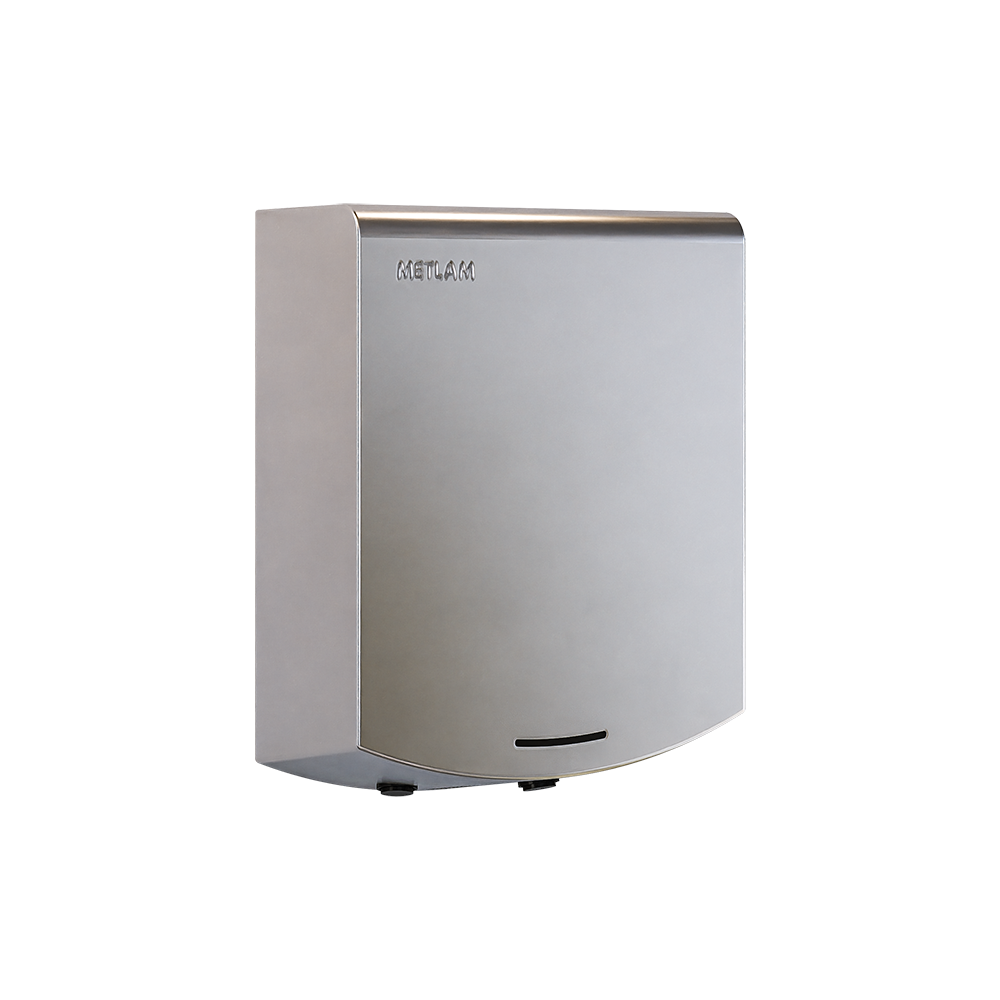

ML_100N_SSSlimline Auto Hand Dryer in Satin Stainless Steel

Specification

Material 1.5mm #304 Satin Stainless Steel
Motor 1/4 HP, 7500 rpm, Brush Type, Dual Ball Bearings
Motor Thermal Protection- Auto Resetting Thermostat turns off at 105°C
Features Touch Free High Flow Outlet
Warranty 5 Year Warranty
(3 Years Parts and Labour
+ 2 Years Parts only)
Power Use 230-240 Vac, 50/60Hz, 2200-2400W
Dimensions 268mmW x 283mmH x 100mmD
Operating Sound Level 70db (+/- 3)
Motor Speed (Max Settings) 7,500 RPM
Motor Speed (Min Settings) 7,500 RPM
Motor Speed Notes Auto Resetting Thermostat turns unit off at 87°C
The thermal fuse cuts the unit off at 141°C
Air Speed (Max Settings) 24m/s == 53MPH
Air Speed (Min Settings) 24m/s == 53MPH
Heater Element Power 2200 Watts
Motor Cut-Off Time 60-sec power cut off, auto reset
Rated Power (Max Settings) 2400 Watts
Rated Power (Min Settings) 2200 Watts
Rated Power Notes Motor 200W, Heating Element 2100W
Energy per day (Max Settings) 10 Watt-hours (Wh)
Energy per day (Min Settings) 9.16 Watt-hours (Wh)
Sensor Type Infrared Automatic, self-adjusting
Adjustable, standard 18cm ± 2cm
Drying Time Less than 15 seconds
Carbon Dioxide Emission 731g Only
IP Rating IP 21
DP Rating IPX 1
Heater Element 2200W @ 240Vac
Heater Auto Resetting Thermostat turns unit off at 87°C
The thermal fuse cuts the unit off at 141°C
Warm Air Output:314.5m3/h (185 CFM) Temp: Ambient +20C
Protection 60-sec power cut off, auto reset
Timing 2-sec delay turn off after the last read
Case Security 2 SS theft-resistant hex drive screws (hex key supplied)
Net Weight 4.5kg
  For Metlam Australia's extensive Hand Dryer Range Click on the link here
Note

 * This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.

* The unit can be hard-wired by an electrician or used with the cord and plug provided

Safety Approvals - Click here to download more information

Green Certificates

This product is part of a package: Complete Accessible Toilet Package
  • This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.
ML_100N_SS
ML_100N_SS Slimline Automatic Hand Dryer Drawing
