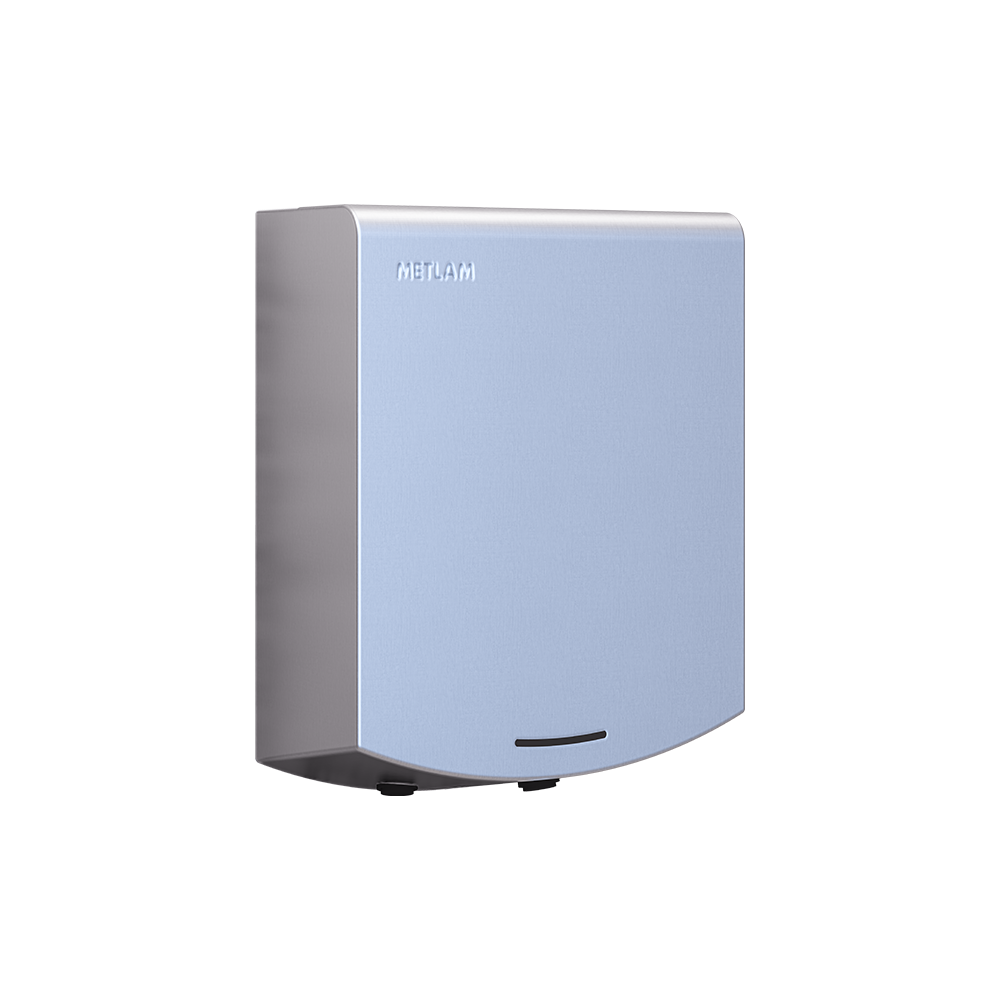

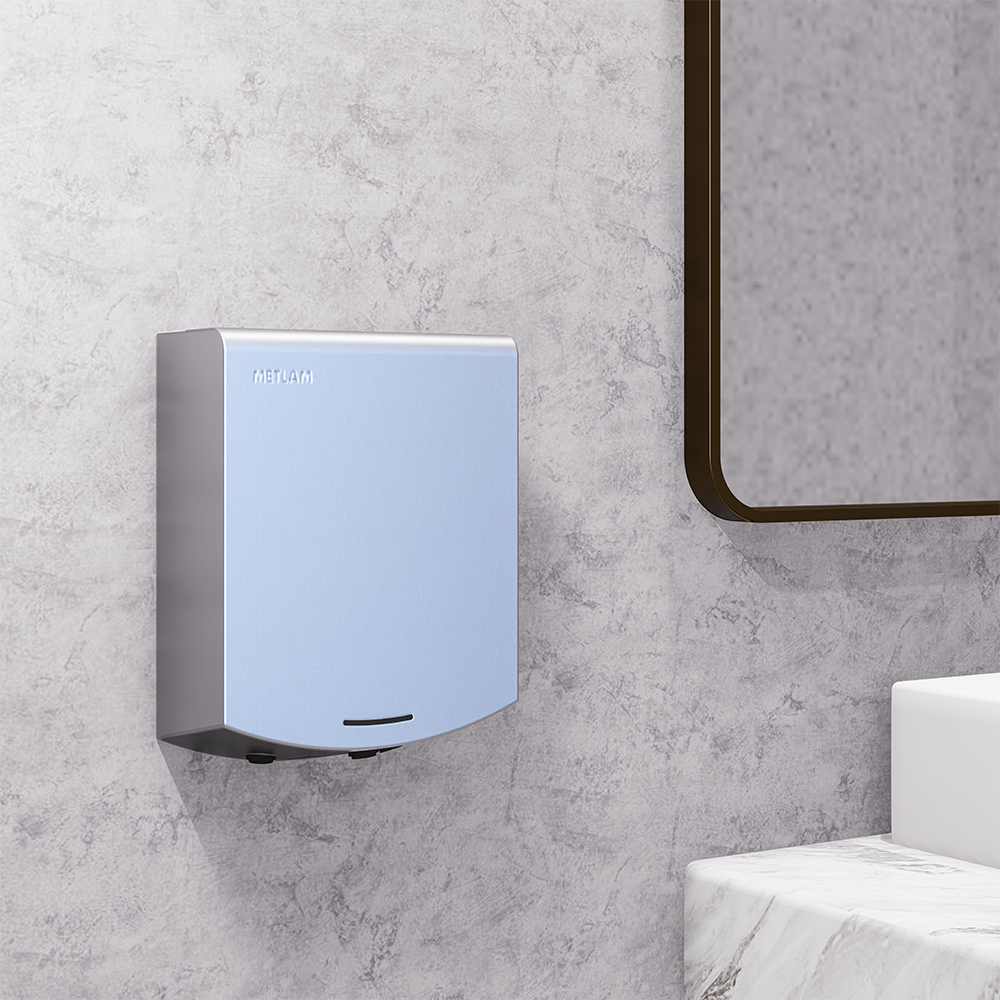

ML_ECLIPSE05_SSEclipse Slimline Automatic Operation Hand Dryer in Satin Stainless Steel

Specification

Material 1.2mm #304 Satin Stainless Steel
Finish Satin Stainless Steel
Motor 500W, 16,000-29,000 r.p.m, adjustable brush type, dual ball bearings
Features Touch-free Patented high-flow dual air outlets
Warranty 5-Year Warranty (3 Years Parts and Labour+ 2 Years Parts only)
Power Use 220-240 Volts, 50Hz
Dimensions 220mmW x 287.9mmH x 100mmD
Operating Sound Level 72db (+-3)@1M db
Motor Speed (Max Settings) 29,000 RPM
Motor Speed (Min Settings) 16,000 RPM
Motor Speed Notes 250-500W Brush Type, Dual Ball Bearings, 95° auto reset overload
Air Speed (Max Settings) 115m/s ==257MPH
Air Speed (Min Settings) 95m/s ==212MPH
Heater Element Power 325-500 Watts, adjustable
Motor Cut-Off Time 60-second power cut off, auto reset
Rated Power (Max Settings) 1000 Watts
Rated Power (Min Settings) 575 Watts
Rated Power Notes Motor 250-500W, Heating Element 325-500W
Energy Per Day (Min Setting) 2.4 Watt-hours (Wh)
Energy Per Day (Max Setting) 4.17 Watt-hours (Wh)
Sensor Type Infrared Automatic - 152mm +/- 20mm present blue LED indicates operation/range
Drying Time Less than 15 seconds
Carbon Dioxide Emission 305g Only
IP Rating IP24
DP Rating IPX 1
Heater Element 325-500W
Heater Auto resetting thermostat turns unit off at 85°C
Warm Air Speed: 95m/s - 115m/s (Adjustable). Temp: Ambient +30°
Protection 60-sec power cut off, auto reset
Timing 2 sec delay turn off after the last read
Case Security 2 SS theft-resistant hex drive screws (hex key supplied)
Net Weight 4.2kg

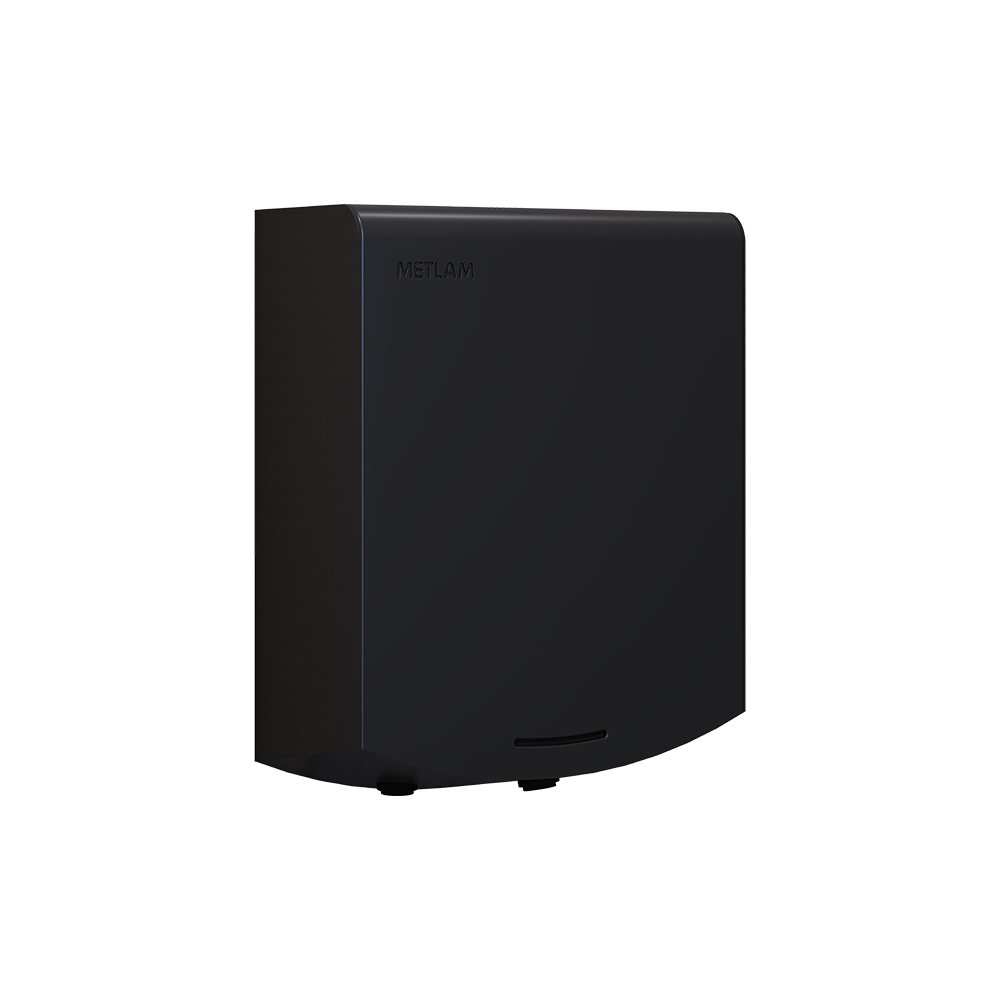

Also Available ML_ECLIPSE_DESIGNER: Designer Black

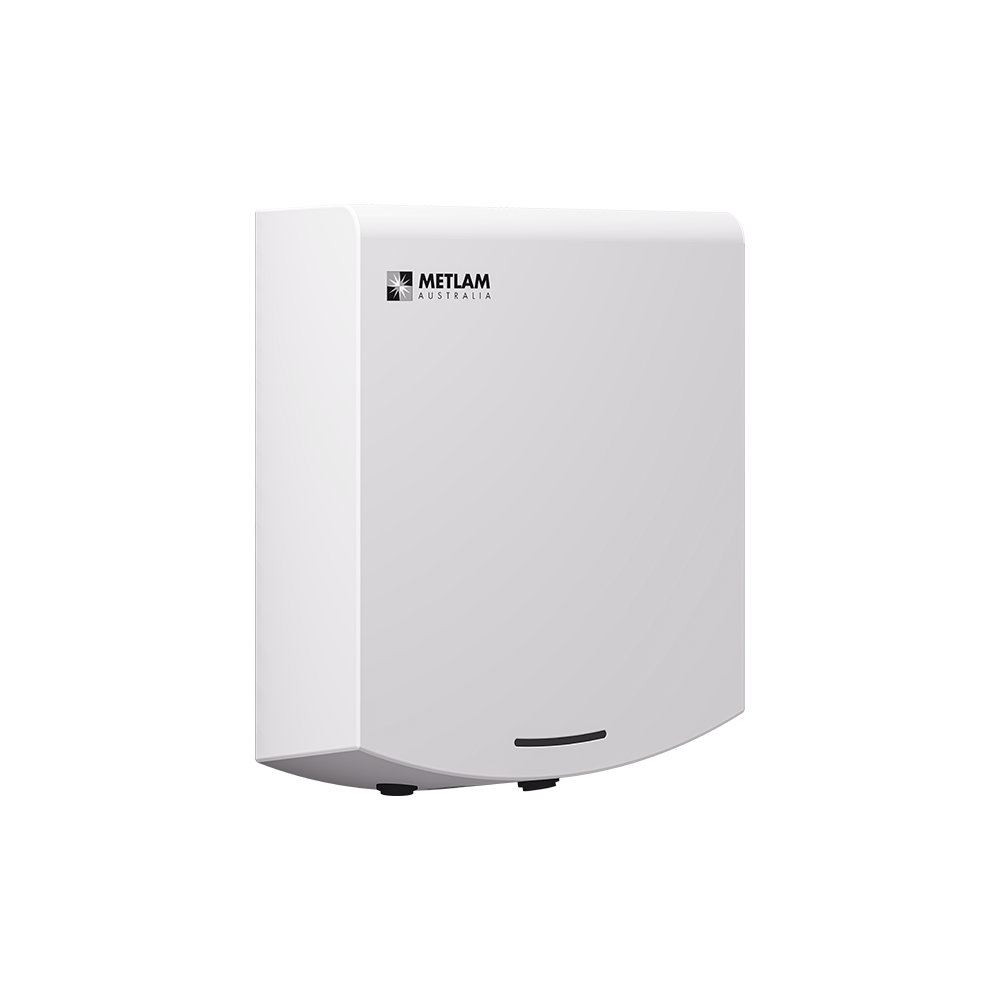

  ML_ECLIPSE01_WHT: Stainless Steel
  For Metlam Australia's extensive Hand Dryer Range Click on the link here
Note

* The unit can be hard-wired by an electrician or used with the cord and plug provided

*This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.

* Hardwire - 80mm from the connection point to the wall.

* Cord and plug - 80mm from the connection point to the bottom of the unit.
For installation instructions download the Metlam Australia App


Safety Approvals - Click here to download more information

Green Certificates





This product is part of a package: Complete Accessible Bathroom Package , Commercial Washroom Package , Changing Places Design 2: With shower rectangular
  • This unit is accessible compliant when installed in accordance with AS1428.1. guidelines.
